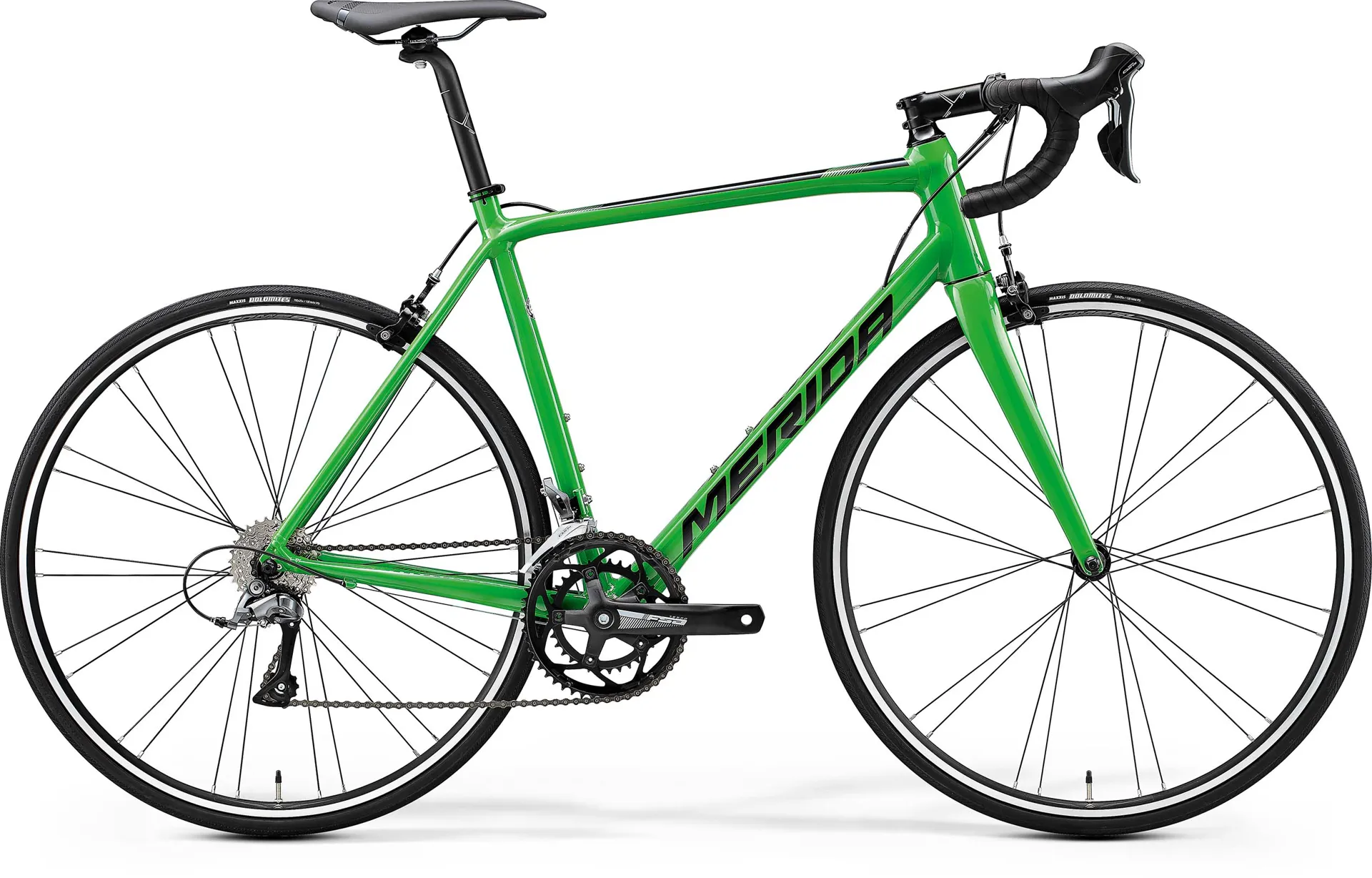

Merida scultura 100 green/black

Brand : Merida

Code : mer2

Lightweight 6066 triple butted aluminium frame with tapered head tube for precise steering and Press-Fit bottom bracket for effective power transfer. Featuring internal cable routing and aero profiled tubing.



GEOMETRY

TECHNOLOGY


PROLITE 66 TRIPLE BUTTED ALUMINIUM

Our proven high-end aluminium (6066) is extremely light and durable. Using triple butted wall thicknesses and hydroforming technology, we tune the aluminium tubes to give the best possible stiffness to weight ratio.


HYDRO FORMING SYSTEM (HFS)

Tubes are inserted into negative moulds and a hot emulsion of water and oil is forced through at pressure, enabling them to be formed into complex shapes.


SMOOTH WELDING

Sometimes called ‘double pass welding’, a second pass over the weld gives a clean organic look to the frame. At first glance you'll be convinced it is carbon.


LIFETIME WARRANTY

Covers the entire ownership of the original purchaser. This applies to manufacturing and material defects and includes bikes used for racing.*A rider and equipment weight limit of 120kg applies.



Technical Information
FRAME
  • Lite - 6066 series triple butted and hydroformed aluminium tubing with smooth welding.  Tapered head tube for precise steering. Press-fit 86 BB, Truncated NACA Fastback profile tubing for aerodynamics. Internal cable routing. – 1530g M/L +/- 3%
SHOCK
  • -
FORK
  • Scultura CF; Tapered steerer; carbon;
WHEEL SIZE
  • 700c
RIMS
  • Merida Comp SL; 17 mm inner width; 20 mm deep
SPOKES
  • Black stainless
FRONT HUB
  • VP M700F; 100 x 9mm axle; 24 spoke
REAR HUB
  • VP M700R; 130 x 9mm axle; 28 spoke with Quick Release
FRONT TYRE
  • Maxxis Dolomites; 700x25C; Kevlar bead - folding
REAR TYRE
  • Maxxis Dolomites; 700x25C; Kevlar bead - folding
GEARS
  • 16
SHIFTERS
  • Shimano Claris
FRONT DERAILLEUR
  • Shimano Claris
REAR DERAILLEUR
  • Shimano Claris; GS
CHAINSET
  • FSA Tempo; 50-34 teeth
CASSETTE
  • Sunrace CS8; 11-28 teeth; 8 speed
BOTTOM BRACKET
  • FSA TH-7420ST, Cartridge Bearing
CHAIN
  • KMC M700
PEDAL
  • Not included
BRAKE LEVER
  • Shimano Claris levers
FRONT BRAKE
  • Merida dual pivot
REAR BRAKE
  • Merida dual pivot
GRIP
  • Merida Road Comp
HANDLEBAR
  • Merida Expert SL
STEM
  • Merida Comp CC; 31.8 mm diameter; -6 degree rise
HEAD SET
  • Merida M2341
SADDLE
  • Merida Comp SL
SEAT POST
  • Merida Comp CC; 27.2 mm diameter; 12 mm layback
TYPE
  • Road Bike
STYLE
  • All-rounder
SEASON
  • 2020
COLOUR
  • Green
OTHER
  • -
